Ariel Cylinders
Ariel 11.000" JG(A)
Ariel 8.875" x 4.125" JG(A) Tandem
Ariel 8.875" x 4.125" JG(A) Tandem
- -Bore: 11.000"
- -Class: JG(A)
- -Stroke: 3"
- -Rated RPM: 1800
- -MAWP: 150 psi
- -SN: C-26415
- -Mic Readings:
- Cylinder I.D. (Vertically): 11.006"
- Cylinder I.D. (Horizontally): 11.003"
- Piston Rod: 1.124"
- -Current Condition:
- Overall exceptionally clean and excellent used condition.

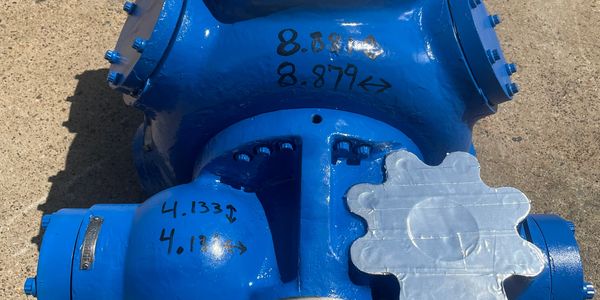

Ariel 8.875" x 4.125" JG(A) Tandem
Ariel 8.875" x 4.125" JG(A) Tandem
Ariel 8.875" x 4.125" JG(A) Tandem
- -Bore(s): 8.875" x 4.125"
- -Class: JG(A)
- -Stroke: 3"
- -Rated RPM: 1800
- -MAWP(s): 8.875"= 230 psi, 4.125"= 1,125 psi
- -SN(s): 8.875"= C-26416, 4.125"= C-26417
- -Mic Readings:
- 8.875" Cylinder:
- -Cylinder I.D. (Vertically): 8.881"
- -Cylinder I.D. (Horizontally): 8.879"
- 4.125" Cylinder:
- -Cylinder I.D. (Vertically): 4.133"
- -Cylinder I.D. (Horizontally): 4.131"
- -Piston Rod: 1.123"
- -Current Condition:
- Overall exceptionally clean and excellent used condition.
Ariel 6.000" ET
Ariel 6.000" ET
Ariel 6.000" ET
- -Bore: 6.000"
- -Class: ET
- -Stroke: 4.5"
- -Rated RPM: 1500
- -MAWP: 1650 psi
- -SN: C-89165
- -Mic Readings:
- Cylinder I.D. (Vertically): 6.003"
- Cylinder I.D. (Horizontally): 6.002"
- Piston Rod: 2.000"
- -Current Condition:
- Overall exceptionally clean and excellent used condition.
- MINOR pitting noticed in bore due to improper preservation previously. May come out with honing; recommend .001"-.002" bore job at machine shop. (No need to re-spray as pitting is extremely minor, and cylinder is almost at new specs on ID mic readings.
Ariel 9.750" RJ
Ariel 6.000" ET
Ariel 6.000" ET
- -Bore: 9.750"
- -Class: RJ
- -Stroke: 3.5"
- -Rated RPM: 1800
- -MAWP: 635 psi
- -SN: C-77202
- -Mic Readings:
- Cylinder I.D. (Vertically): 9.752"
- Cylinder I.D. (Horizontally): 9.751"
- Piston Rod: 1.499"
- -Current Condition:
- Overall exceptionally clean and excellent used condition.
